2007–Present Daihatsu Gran Max S400 Toyota LiteAce Town Ace Mazda Bongo Lighting Set Headlight Taillamp Van Pickup

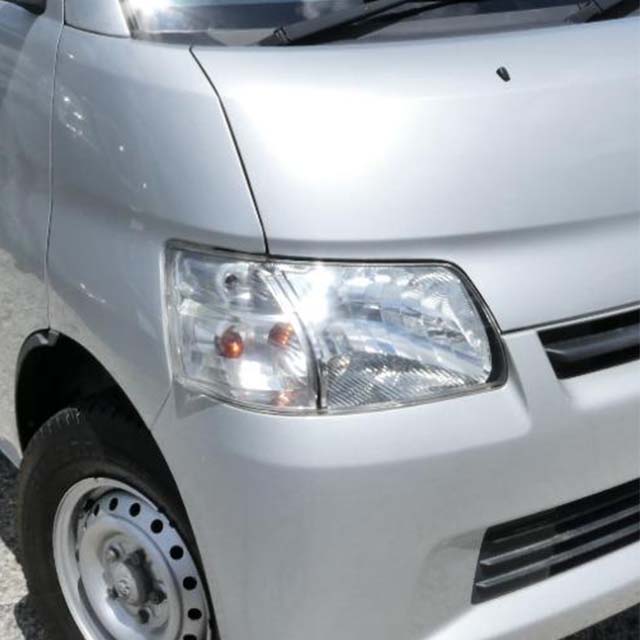

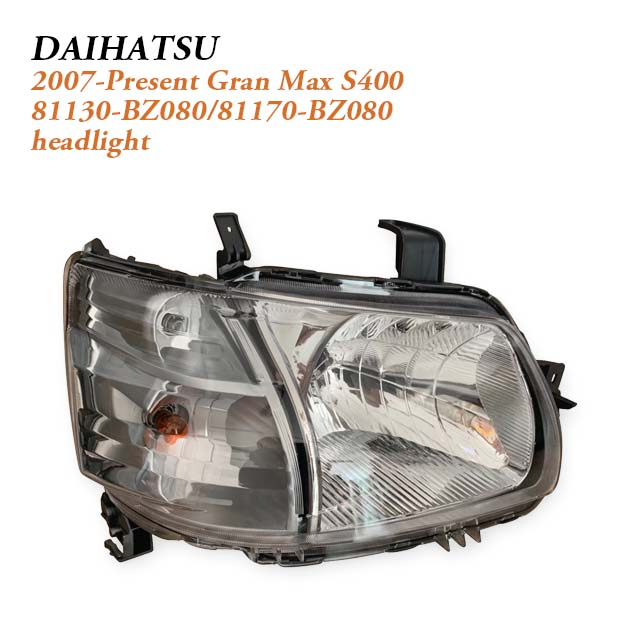

Applicable models

Daihatsu Gran Max S400 series vans and pickups plus Toyota LiteAce Town Ace and Mazda Bongo models built on the same S400 chassis from around 2007 onward

Light source type

Conventional halogen headlamp system suitable for passenger and light commercial use

Bulb specification

H4 dual filament bulb providing combined high beam and low beam typically rated 12 V 60 W 55 W using P43t base as listed for Gran Max headlamp upgrades

Operating voltage

12 V DC standard automotive electrical system

Housing material

High strength ABS or polypropylene PP headlamp body designed for rough commercial service

Lens material

Clear polycarbonate PC lens with hard coat and UV protection to reduce yellowing in hot climates

Reflector finish

Crystal style reflector with high reflectivity chrome plating to maximise halogen light output

Adjustment

Basic manual vertical and sometimes horizontal aim adjustment no standard automatic leveling motor in most work trim grades

Protection

Built with sealed joints and dust covers around the H4 bulb to deliver typical headlamp level dust and water resistance when properly installed

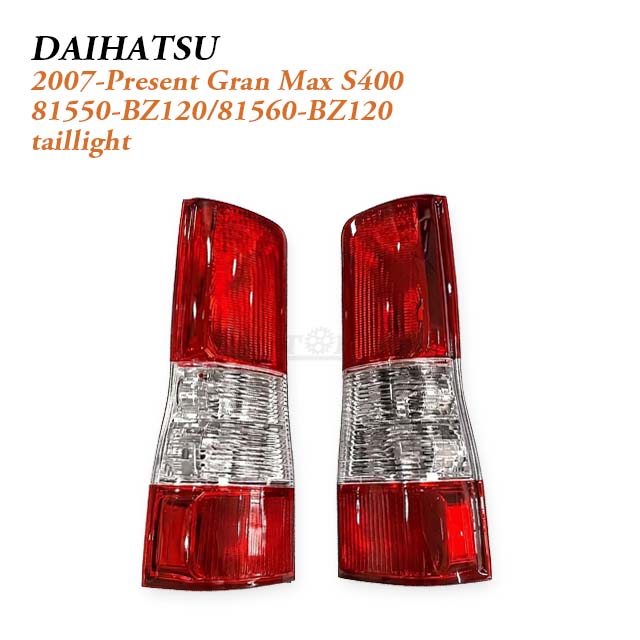

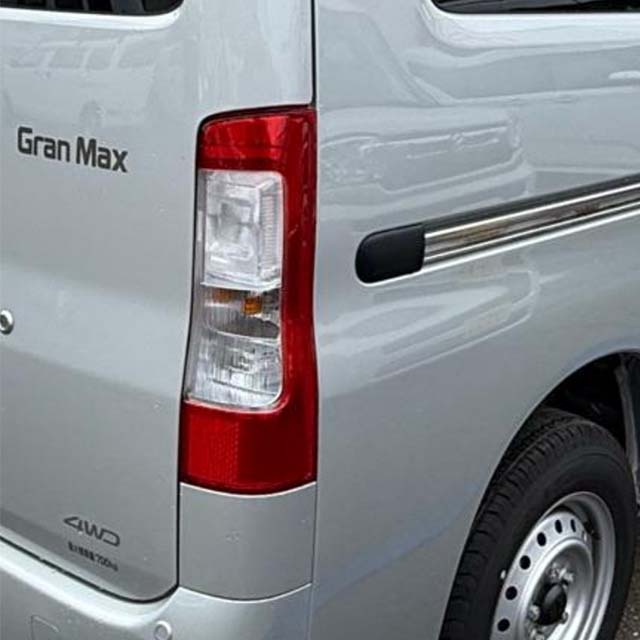

Applicable models

Gran Max van and corresponding LiteAce Town Ace Bongo van versions using vertical rear lamp assemblies on S400 platform

Light source design

Traditional halogen bulb type rear combination lamp not an integrated LED board type in OE configuration

Bulb specification

Brake and tail share a dual filament bulb such as P21 5W rated 12 V 21 W 5 W rear turn signal uses single filament amber bulb similar to PY21W 12 V 21 W reverse lamp uses single filament white bulb such as P21W 12 V 21 W

Operating voltage

12 V DC rear lighting circuit

Lens and housing materials

Front cover made from impact resistant PMMA or PC plastic with long term UV and fade resistance rear housing moulded in grey or black ABS or PP plastic for durability

Functions and colours

Red section for brake and tail amber section for indicator and clear white section for reverse light meeting common road regulations

Environmental protection

Rear lamp structure built to meet automotive dust and water resistance typical of sealed van taillight assemblies suitable for heavy rain and regular washing

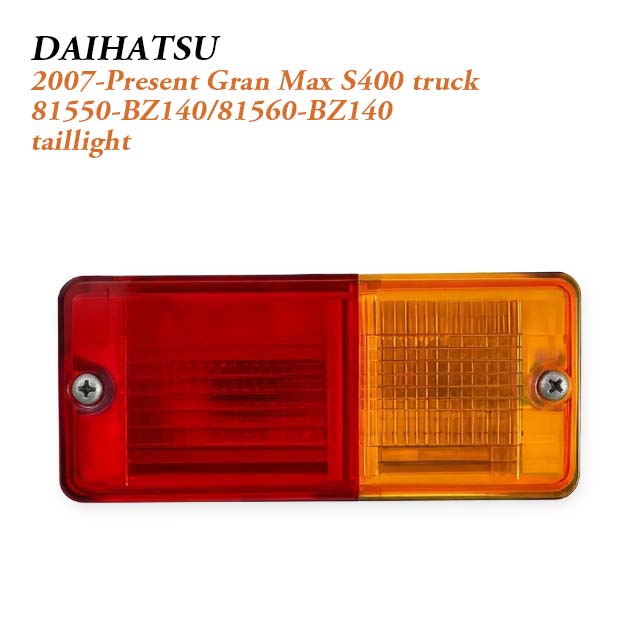

Applicable models

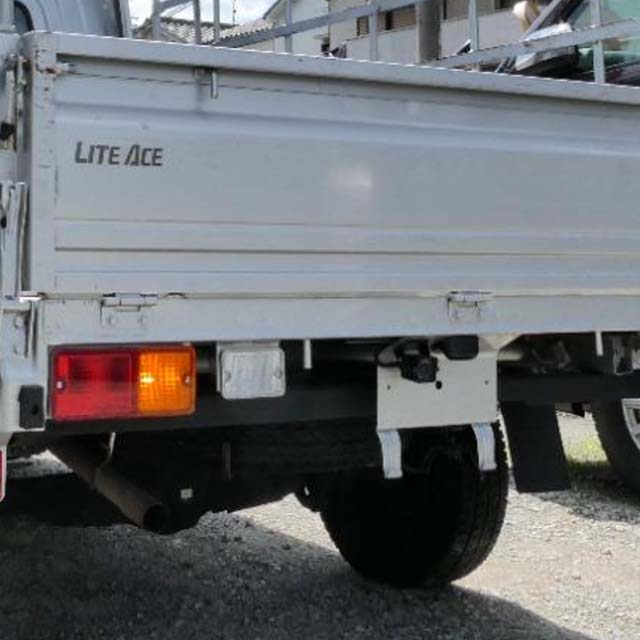

Gran Max pickup cargo bed models and equivalent LiteAce Town Ace Bongo pickup derivatives using rectangular rear lamps mounted to the bed corners

Light source design

Two colour halogen bulb style tail lamps designed for simple maintenance on work trucks

Red zone function

Uses dual filament bulb about 12 V 21 W 5 W to serve as running tail lamp at low intensity and brake lamp at high intensity

Amber zone function

Uses single filament bulb about 12 V 21 W to serve as rear turn signal indicator and sometimes shared with hazard flashing function

Overall electrical spec

Lamp set designed for standard 12 V car electrical system with total per side power draw around 18 W to 21 W depending on bulb choice

Lens material

Weather resistant PMMA plastic lens with separated red and amber segments produced by colour moulding for long lasting appearance

Housing material

High strength ABS or PP rear body housing resistant to vibration and minor impacts from loading work

Mounting structure

Lens includes two cross head screw holes usually one at each side to allow quick removal for bulb replacement and simple lamp servicing in fleet workshops
