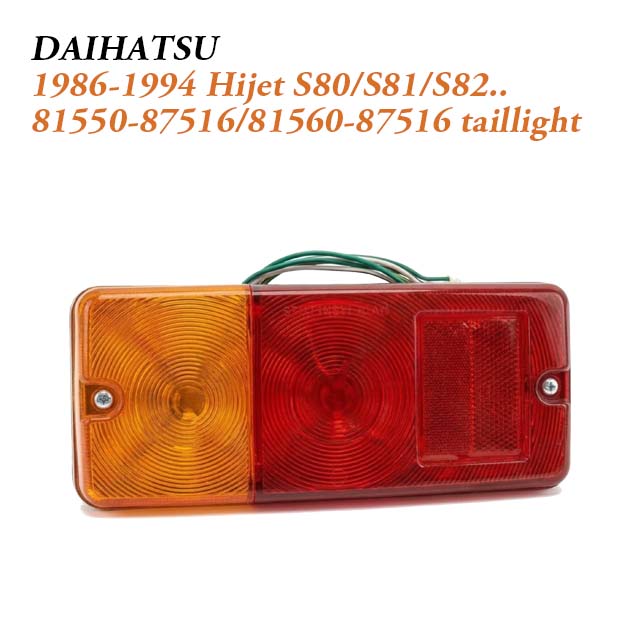

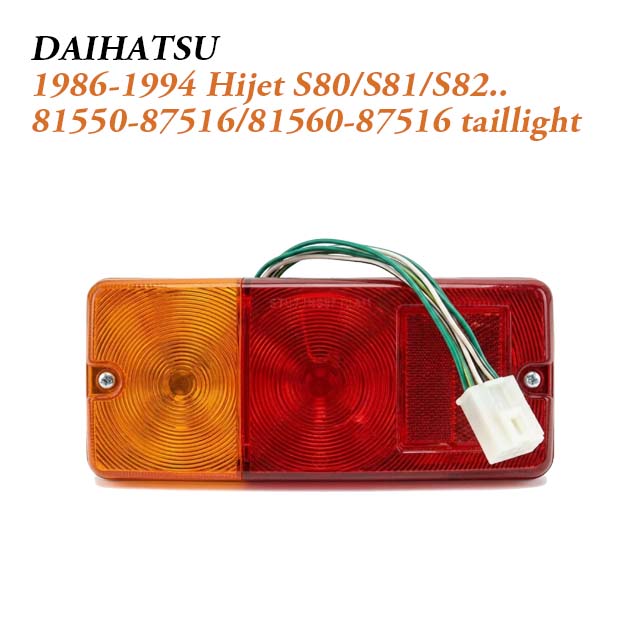

1986-1994 Daihatsu Hijet S80 S81 S82 S83 Durable Tail Light Lighting Set for Mini Truck

  • Daihatsu Hijet

  • Universal

  • 10 sets

  • FOB,  CIF

  • T/T,  L/C,  Western Union

  • USD,  EUR,  HKD

  • Toyota Pixis Truck, Daihatsu Atrai, Piaggio Porter, Toyota Sparky

  • 1986-1994

  • Lighting

  • Rear lamp

Fitment:
1986-1994 Daihatsu Hijet S80
Parts:
Taillamp
SKU:
Availability:
Quantity:
Add to Basket

OE Cross‑Reference Disclaimer

The OE and cross‑reference numbers listed on this page are provided for reference and identification purposes only. They are used to help match our replacement parts to the corresponding original equipment applications and do not imply that the products are genuine OEM items, supplied by or endorsed by the vehicle manufacturer. Customers must confirm fitment by checking vehicle details, dimensions and specifications before ordering; AUTOBRIDGE™ (Xiamen) Vehicle Parts Supply is not responsible for losses caused by incorrect use of OE or cross‑reference information.

Rear lamp

Unfortunately, I couldn't find exploded views of the Daihatsu Hijet S80's accessories. The known E/O part numbers are:

  • Hijet S80 series:

    • right side: 81550-87516

    • left side: 81560-87516

Rear lamp dimensions and construction

Spec

Details

Overall length

Approx 7.25 inch 184 mm lens length per lamp based on S80 tail light assemblies

Overall height

Approx 3.5 inch 89 mm lens height

Overall depth

Approx 3.0 to 3.15 inch 75 to 80 mm from lens face to housing rear suitable for S80 body panel recess

Lens material

PMMA acrylic lens for high transparency and good weather resistance

Housing material

Black ABS or PC plus ABS plastic base designed for light commercial use

Mounting style

Screw on style typically four mounting screw holes that bolt to rear body panel or lamp bracket

Sealing

Lens and housing join line designed for gasket and sealant to resist water and dust useful on farm and work site roads

Rear lamp electrical specifications

Spec

Details

System voltage

12 V electrical system typical for 1980s kei trucks

Brake and tail bulb

Dual contact bulb P21 5W using BAY15d base 12 V 21 W brake filament and 12 V 5 W tail filament

Turn signal bulb

Single contact bulb P21W 12 V 21 W usually amber lens or clear lens with amber bulb

Reverse bulb

Single contact bulb P21W 12 V 21 W white light output for backing

Socket layout

Three bulb positions within housing tail brake indicator and reverse with matching BAY15d and BA15s style sockets

Harness interface

Connects to vehicle rear harness via bullet style or plug connector depending on sub model and market

Compatibility and fitment

Spec

Details

Primary models

Daihatsu Hijet truck pickup S80P S81P S82P S83P as noted in mini truck parts listings

LHD variants

S80LP and S81LP left hand drive trucks using same rear lamp dimensions

Related models

Some early S110P Hijet trucks reported to share identical 7.25 by 3.5 inch rear lamp assemblies

Generation

Seventh generation Hijet produced roughly 1986 to 1994 in Japan covering truck van and deck van versions

Body styles

Standard pickup deck van and some export mini trucks that retain S80 style rear corners

Features

  • Compact rear lamp housings match the original 7.25 inch by 3.5 inch S80 design so classic Hijet trucks keep their period correct look while getting fresh lenses and reliable 12 V lighting for inspection and road use.

  • PMMA acrylic lenses and ABS housings are well suited to older kei trucks that still work on farms plantations and construction sites because they resist UV fading better than many generic replacements and handle vibration from rough roads.

  • Standard P21 5W and P21W bulb specification makes it easy for mechanics in Southeast Asia to source replacements from local parts shops and also allows simple LED bulb upgrades for owners who want brighter brake and reverse lights without re wiring the truck.

Detailed Description

This lighting set is designed for 1986–1994 Daihatsu Hijet S80 series trucks that are still working hard in farms warehouses and small delivery jobs in Asia by matching the 7.25 inch by 3.5 inch rear lamp size PMMA lens and 12 V P21 family bulbs the kit lets owners replace cracked or faded tail lights as a pair so their classic kei truck keeps its original look while meeting modern visibility expectations and staying easy to service with readily available bulbs in local markets.

  • About Product Pics

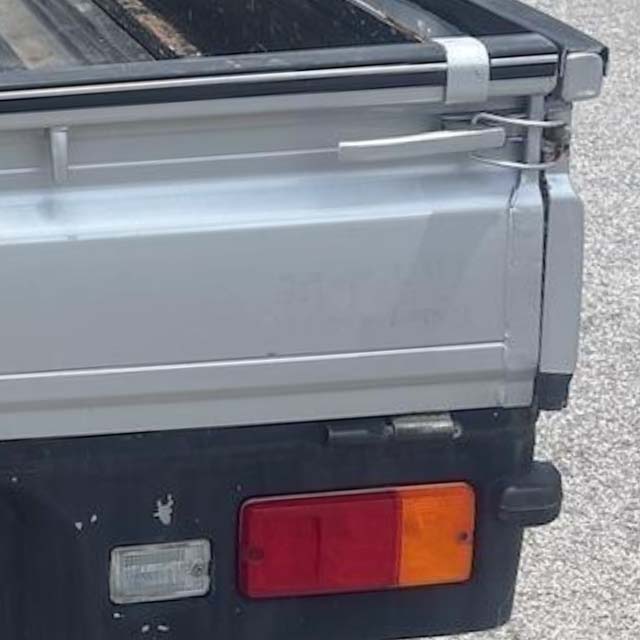

    The product images displayed on the product pages are real photographs, provided for reference purposes only. To help users clearly identify the corresponding positions of compatible models (for example, a close-up of the rear trunk area outline), certain images are quoted from the Autohome or others open databases. The copyright of these reference images belongs to the websites.
