2015-Present Suzuki Every Wagon DA17V DA17W City Kei Van Lighting Set Front Headlight Rear Tail Light

  • Universal

  • 10 sets

  • FOB,  CIF

  • T/T,  L/C,  Western Union

  • USD,  EUR,  HKD

  • Suzuki Every Wagon

  • 2015-Present

  • Lighting

Fitment:
Parts:
SKU:
Availability:
Quantity:
  • Aftermarket replacement lighting sets with OEM-quality standards for Suzuki Eevery (Wagon) DA17V/DA17W

OE Cross‑Reference Disclaimer

The OE and cross‑reference numbers listed on this page are provided for reference and identification purposes only. They are used to help match our replacement parts to the corresponding original equipment applications and do not imply that the products are genuine OEM items, supplied by or endorsed by the vehicle manufacturer. Customers must confirm fitment by checking vehicle details, dimensions and specifications before ordering; AUTOBRIDGE™ (Xiamen) Vehicle Parts Supply is not responsible for losses caused by incorrect use of OE or cross‑reference information.

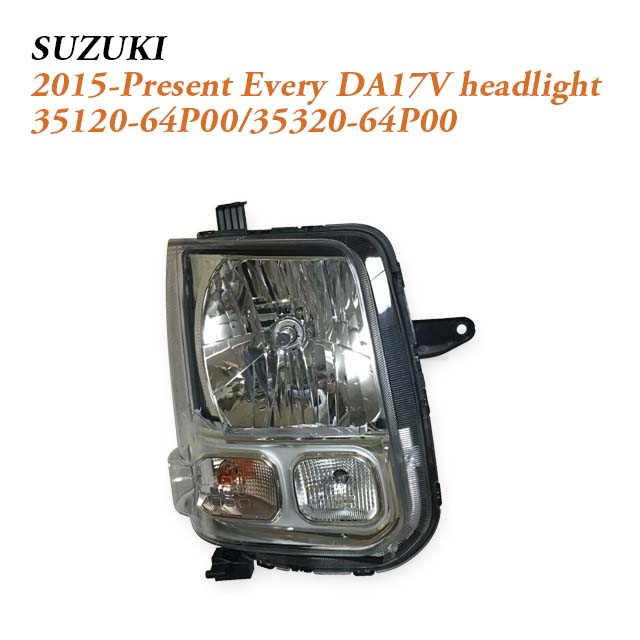

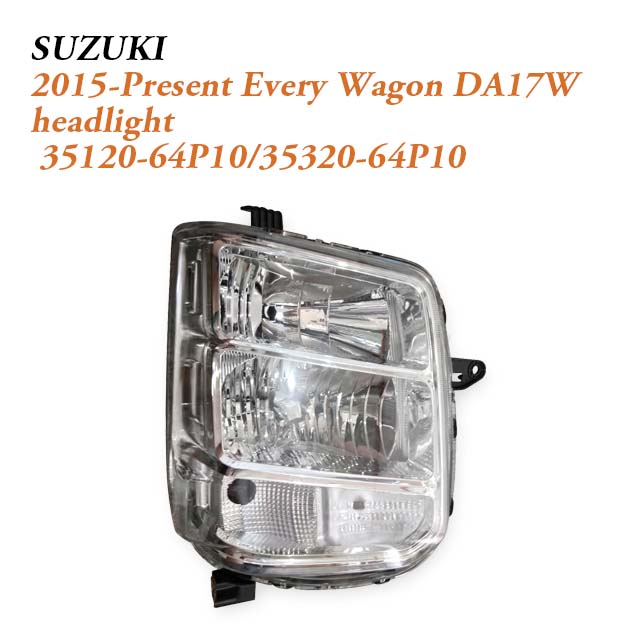

Front lamp

Unfortunately, I couldn't find exploded views of the Suziki Every DA17's accessories. The known E/O part numbers are:

  • Every DA17V:

    • right side: 35120-64P00

    • left side: 35320-64P00.

  • Every Wagon DA17W:

    • right side: 35120-64P10

    • left side: 35320-64P10

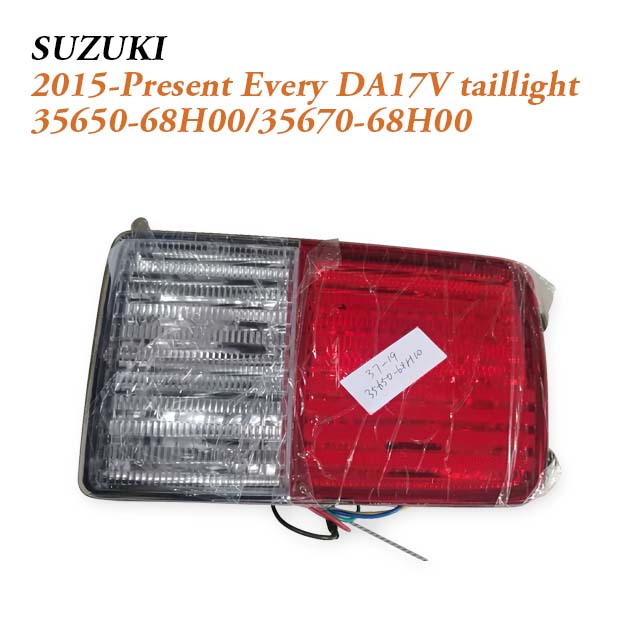

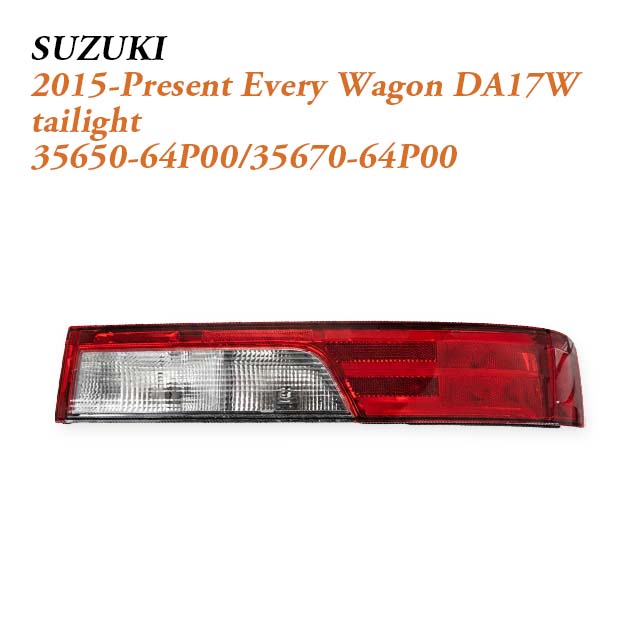

Rear lamp

Unfortunately, I couldn't find exploded views of the Suziki Every DA17's accessories. The known E/O part numbers are:

  • Every DA17V:

    • right side: 35650-68H00

    • left side: 35670-68H00

  • Every Wagon DA17W:

    • right side: 35650-64P00

    • left side: 35670-64P00

Electrical system
12 V negative earth lighting system
Bulb type
H4 halogen bulb for low beam and high beam in one socket
Front position lamp
T10 bulb rated 12 V 5 W inside headlamp or nearby position lamp
Front turn signal
T20 pinch difference bulb rated 12 V 21 W amber at front indicator location
Lens material
Clear plastic lens typically polycarbonate with UV protection suitable for kei van daily use
Housing material
Plastic reflector housing designed for DA17 front fascia and bumper profile
Electrical system
12 V rear lighting harness shared with high mount stop and license lamps
Tail and stop bulb
T20 bulb rated 12 V 21 W 5 W for tail and brake light function according to DA17W bulb chart
Rear turn signal bulb
T20 bulb rated 12 V 21 W amber used for rear indicator position
Back up bulb
T16 bulb rated 12 V 16 W for reverse light as listed
Lens layout
Rear lamp lens with red area for tail and brake amber area for indicator and clear area for reverse similar on DA17V and DA17W

Features

  • Lighting set follows the official DA17W bulb chart so the H4 12 V 60 W 55 W headlamps and T20 plus T16 rear bulbs match Suzuki factory specifications making service easy for local workshops and fleets.

  • Headlight assemblies use clear plastic lenses with multi reflector design and replaceable halogen bulbs so owners can maintain standard output or upgrade to legal LED kits while keeping the same housing.

  • DA17V cargo van and DA17W wagon use different rear lamp styling so this lighting set can be supplied with tail lamps matched to each body type DA17V with more basic work van lens design and DA17W with passenger style clear and red combinations helping buyers choose the look that fits fleet duty or family use while keeping the same 12 V T20 and T16 bulb specification.

Detailed Description

This lighting set is made for 2015–present Suzuki Every DA17V and DA17W owners who rely on their kei vans for daily commuting school runs and light commercial deliveries by combining 12 V H4 headlamps with correctly rated T20 and T16 rear bulbs in OE style housings the kit lets workshops and DIY users restore forward and rear visibility after accident damage or age related fading while keeping later LED customisation options open for drivers who want a more modern look without changing the basic wiring.
